Industrial Products Switched Interlocked Sockets

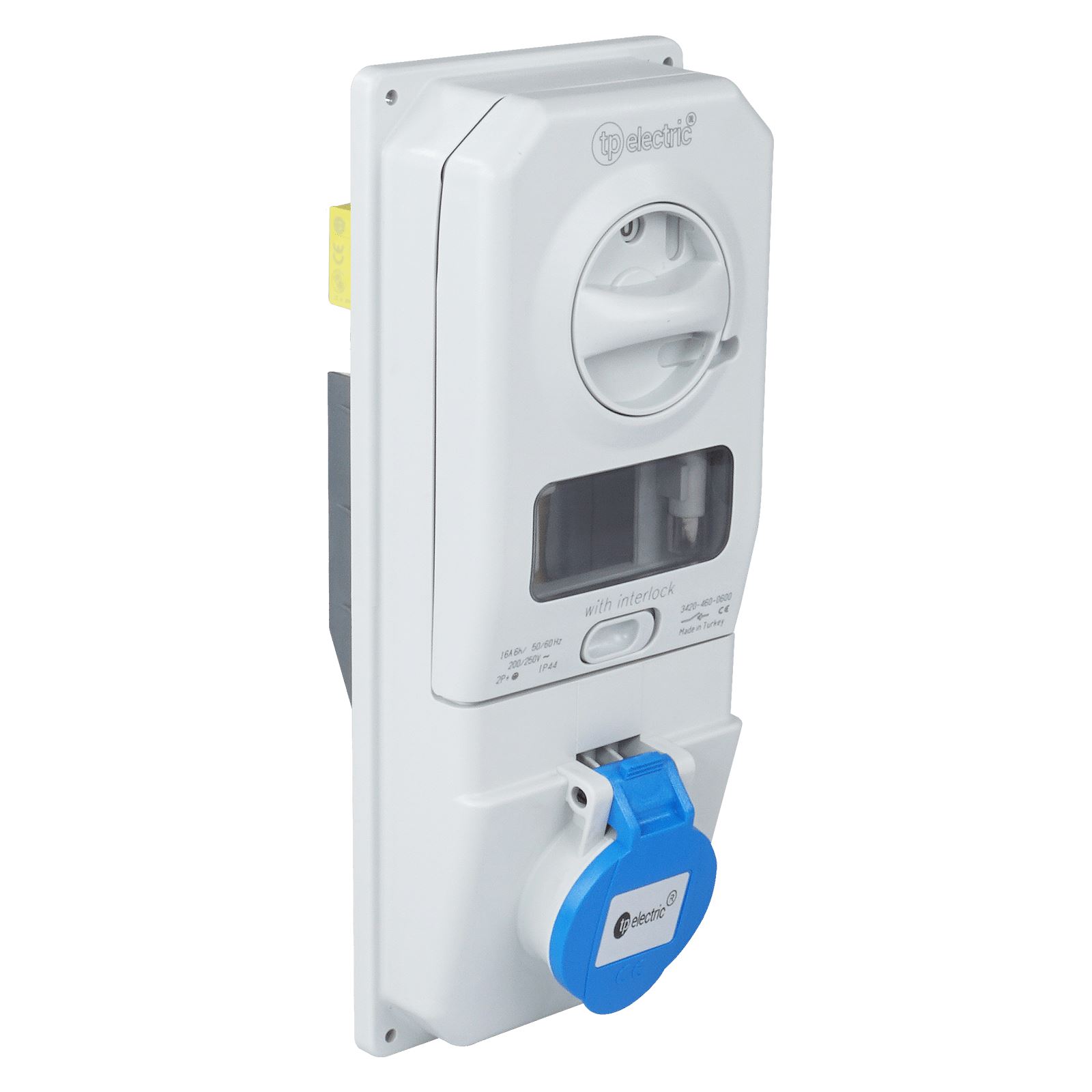

Switched Interlocked Socket

Switched Interlocked Socket

3420-460-0600
Current
16A
Number Of Poles
3
Protection Class
IP 44
Clock Position
6h
With Fuse Slot
Available
Product Type
Panel Type
Voltage
200 - 250V. AC
  • IP 44 protection class
  • Different earth contact positions
  • Spare fuse section
Mechanical Locking
  • The switch can not be turned to 1 (ON) position and energized, without inserting the plug in
  • When the plug is inserted, the switch can be turned to 1 (ON) position and energised
  • The plug can not be removed when the switch is in 1 (ON) position (when the system is energised)
  • When the system is energised, fuse cover can not be opened
  • The plug can be removed when the switch is turned to 0 (OFF) position (when the system is de-energised)
Avdantages
  • All components are assembled on the cover
  • Due to small design, they occupy small space on the wall
  • All the cabling is made so ready to connect
  • Conforming to EN 60309 standards
